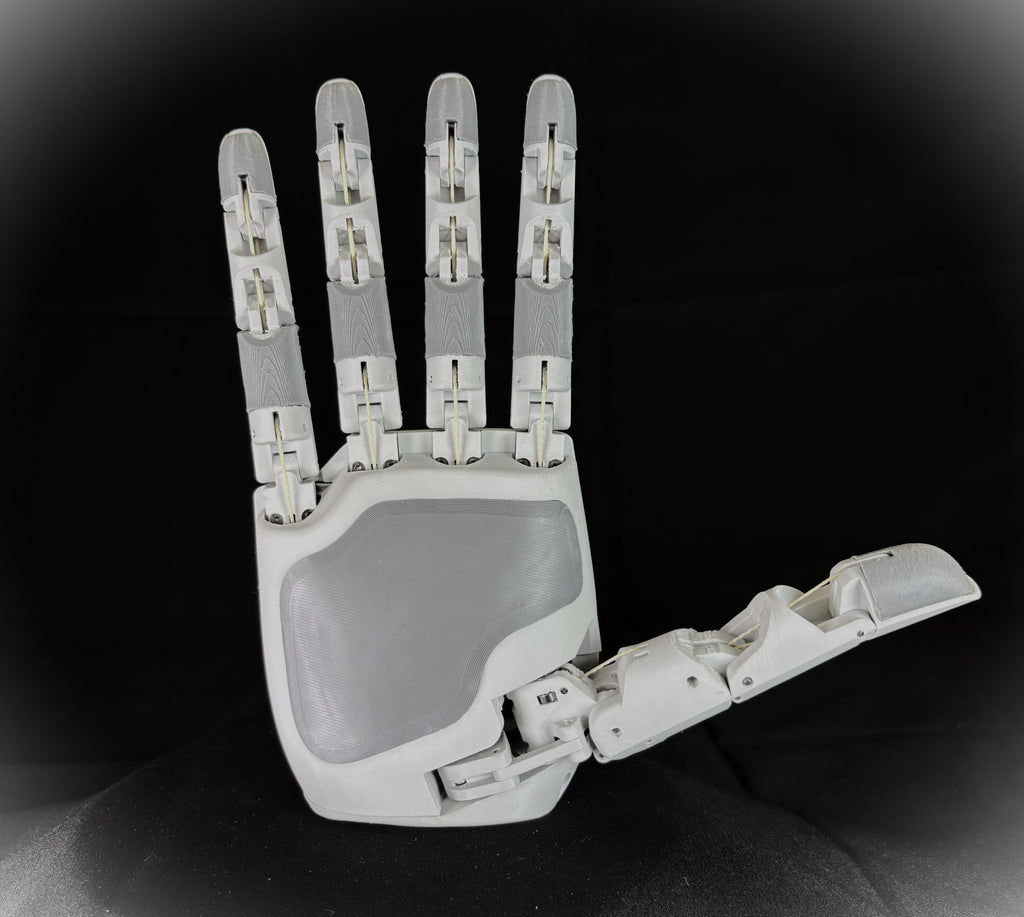

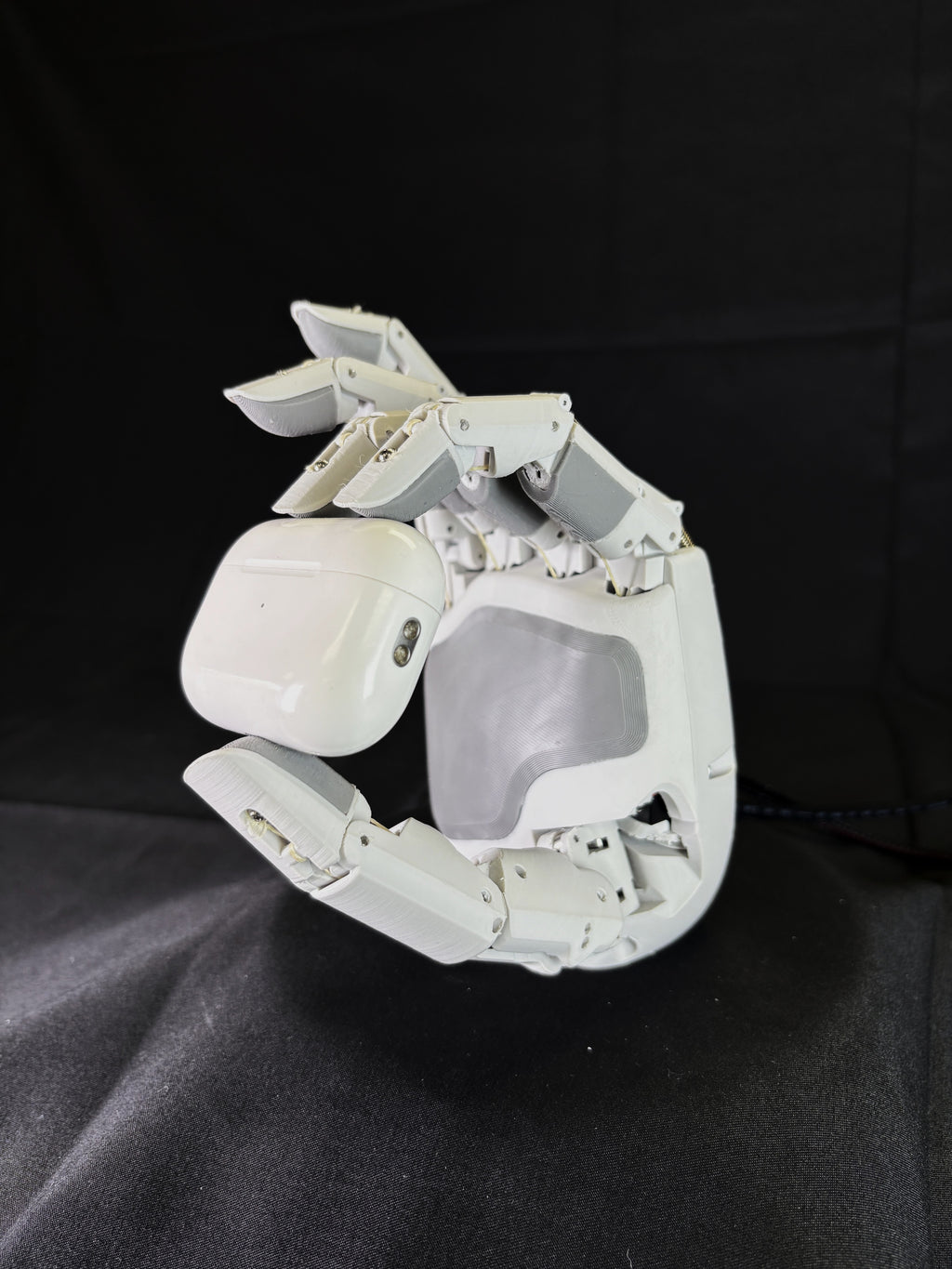

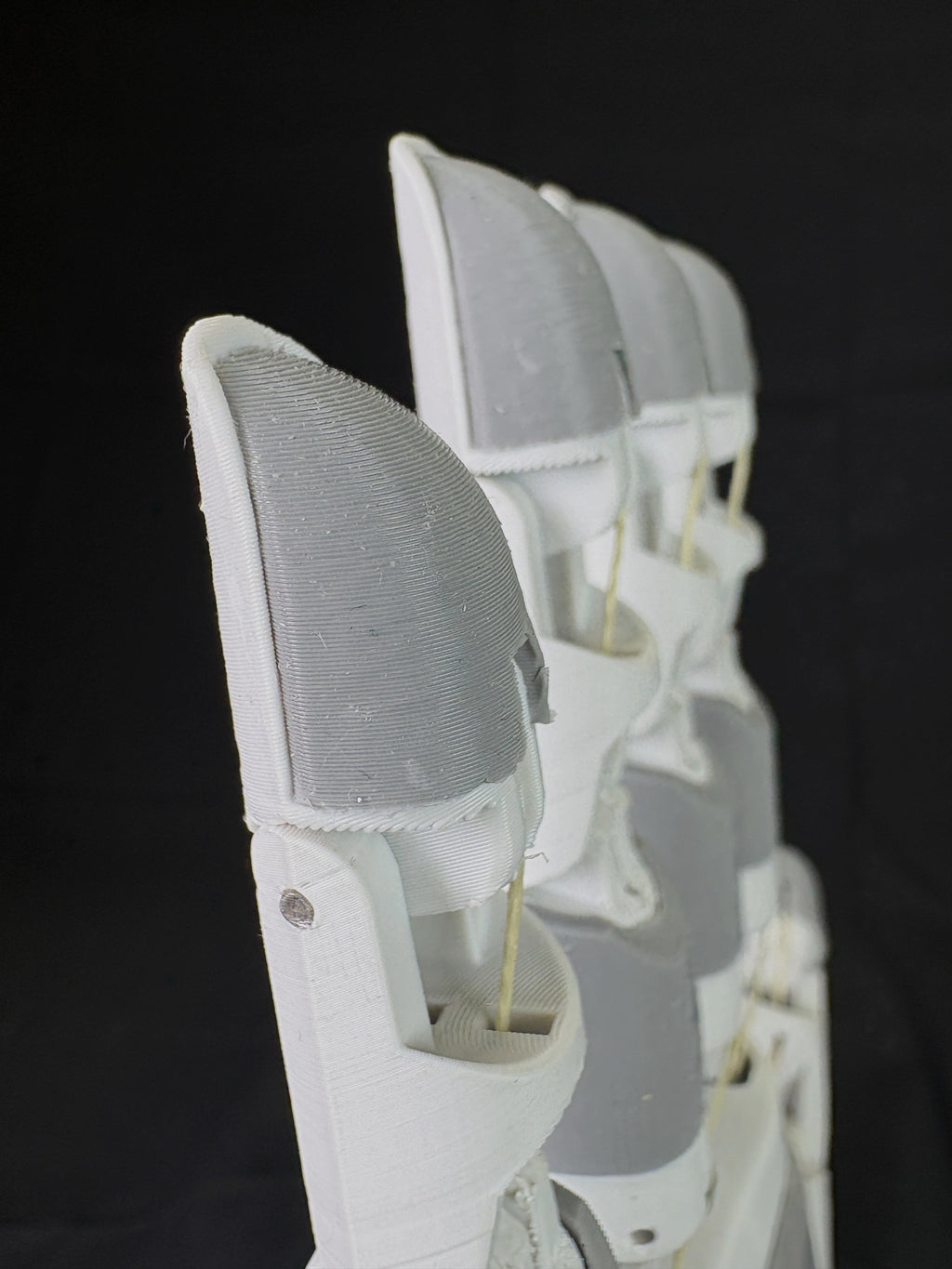

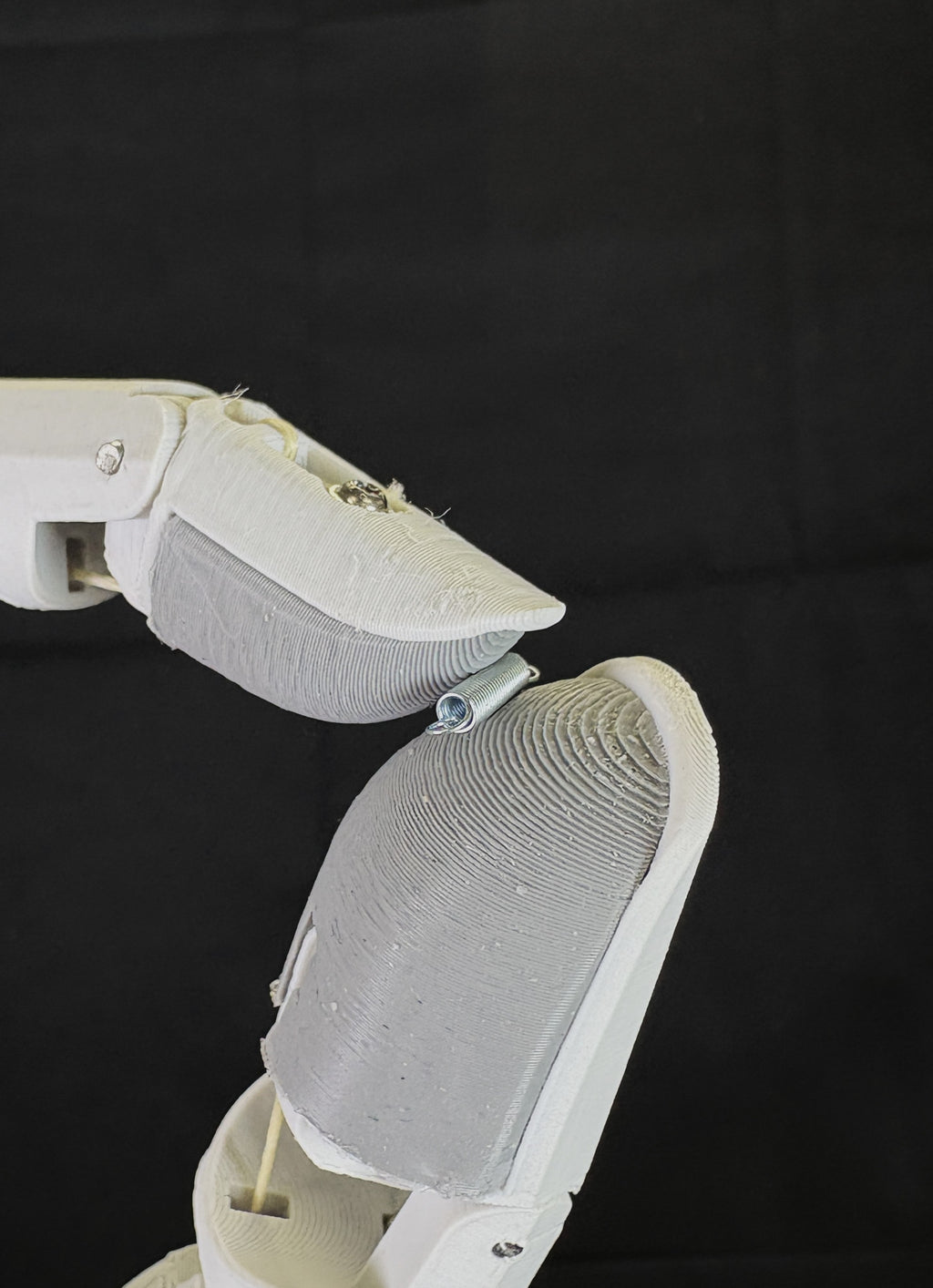

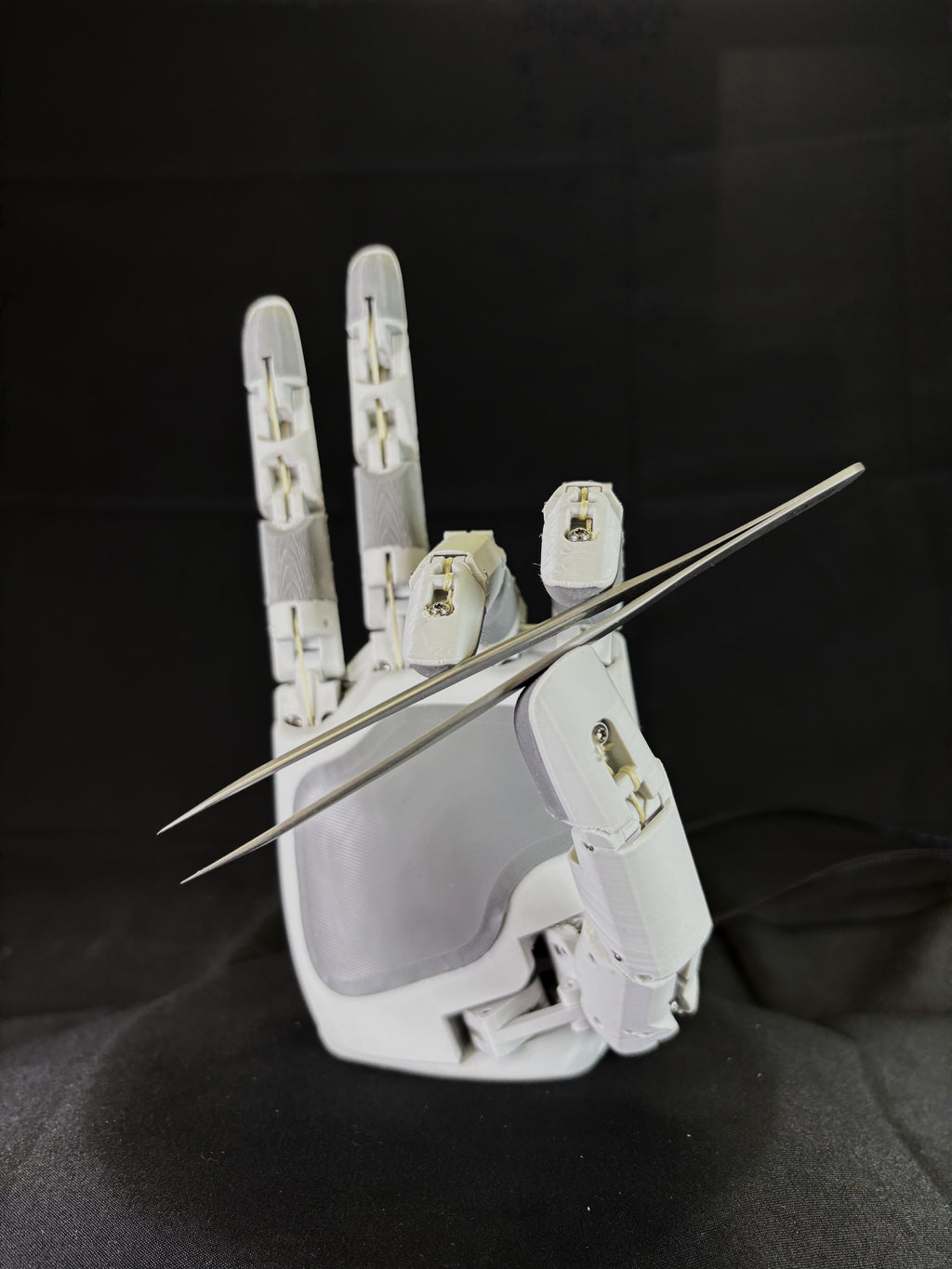

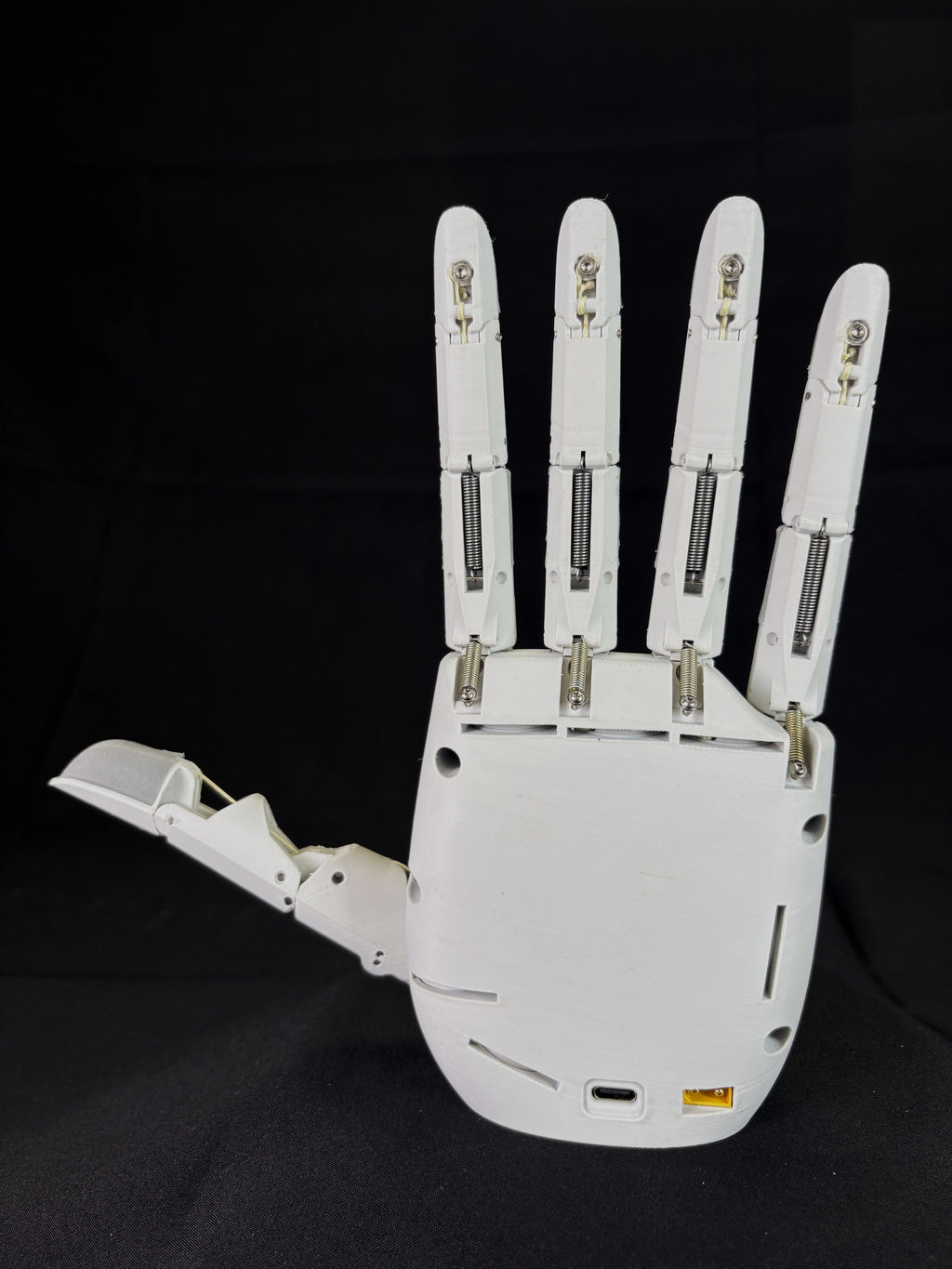

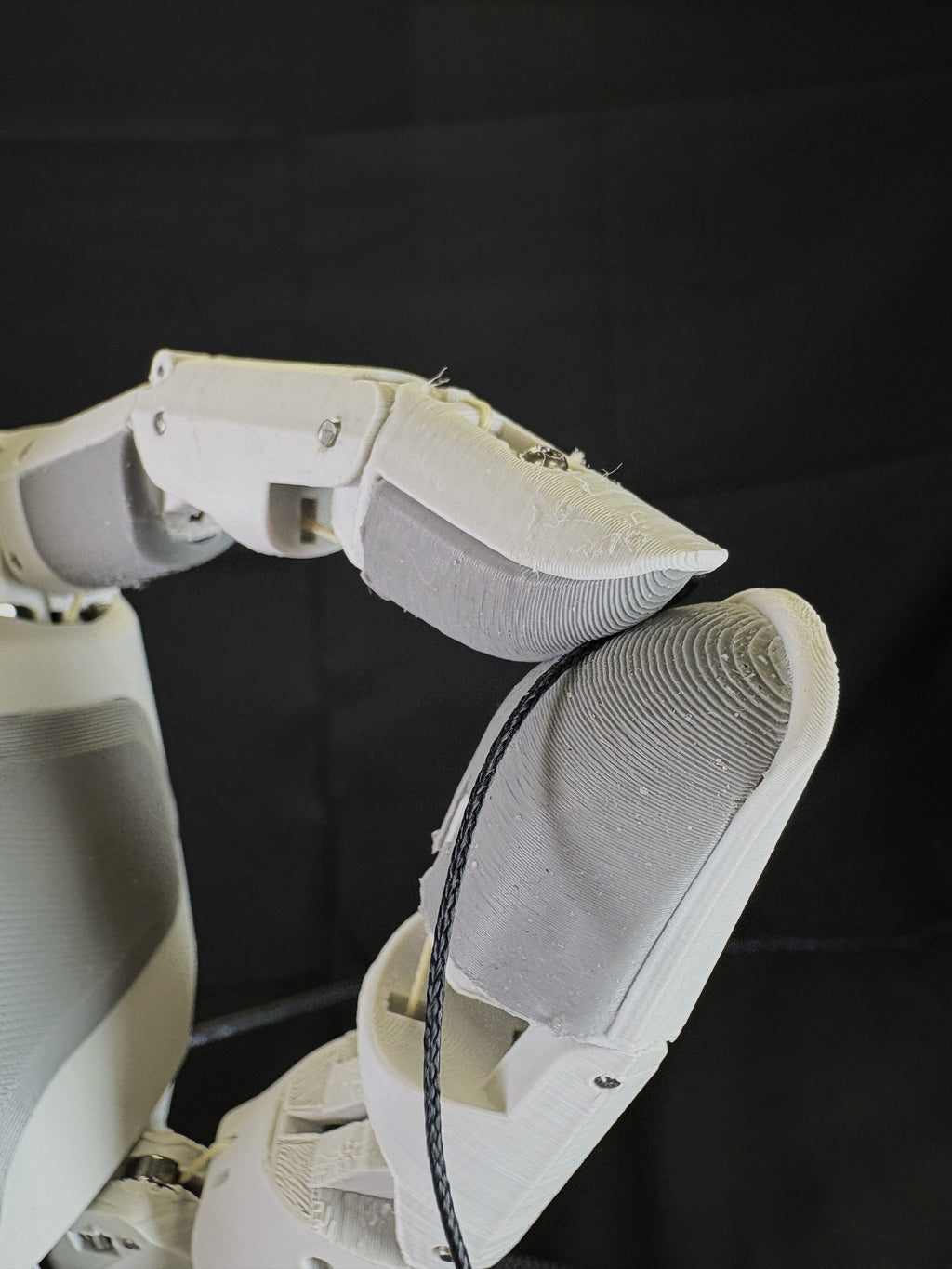

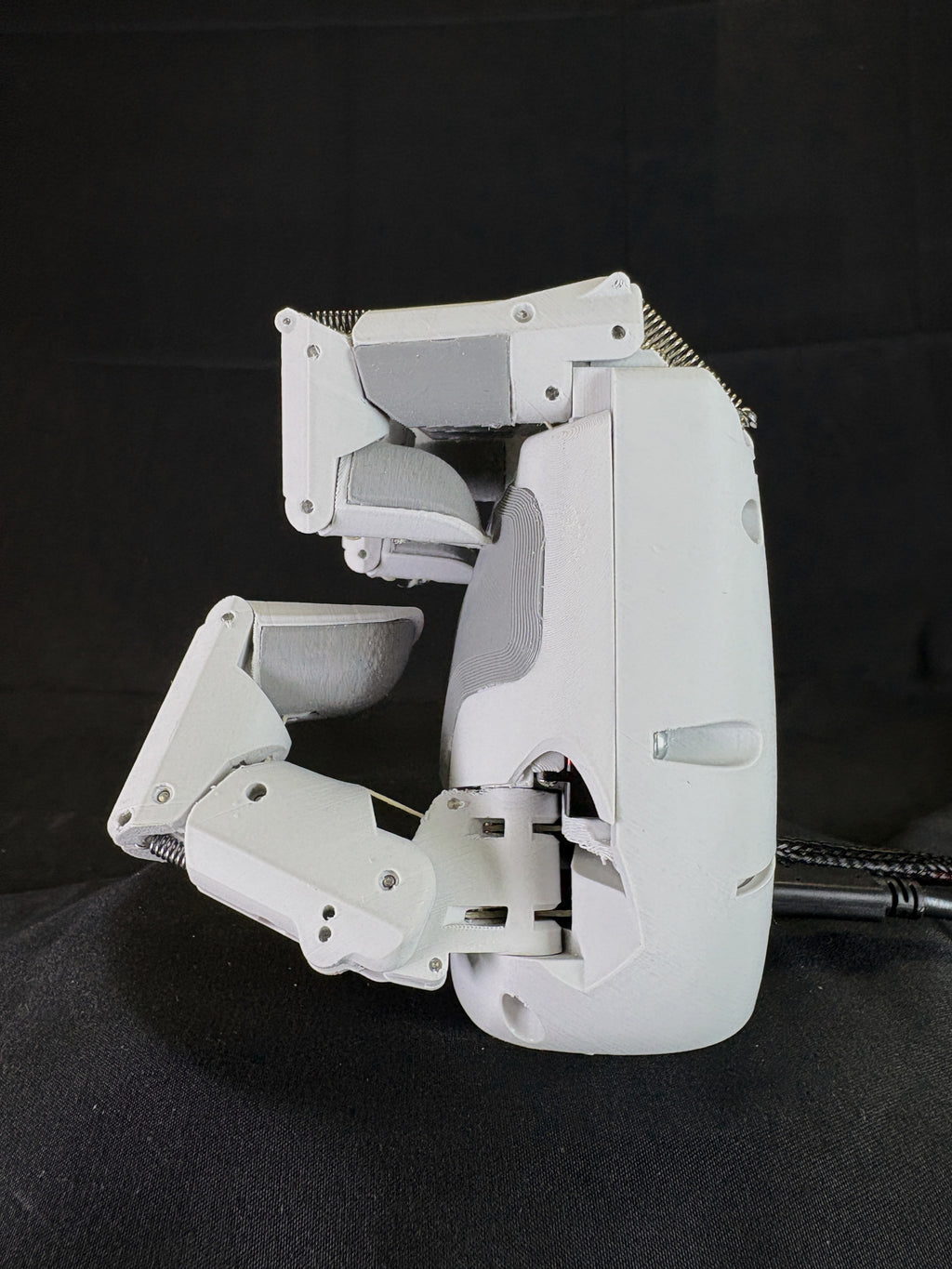

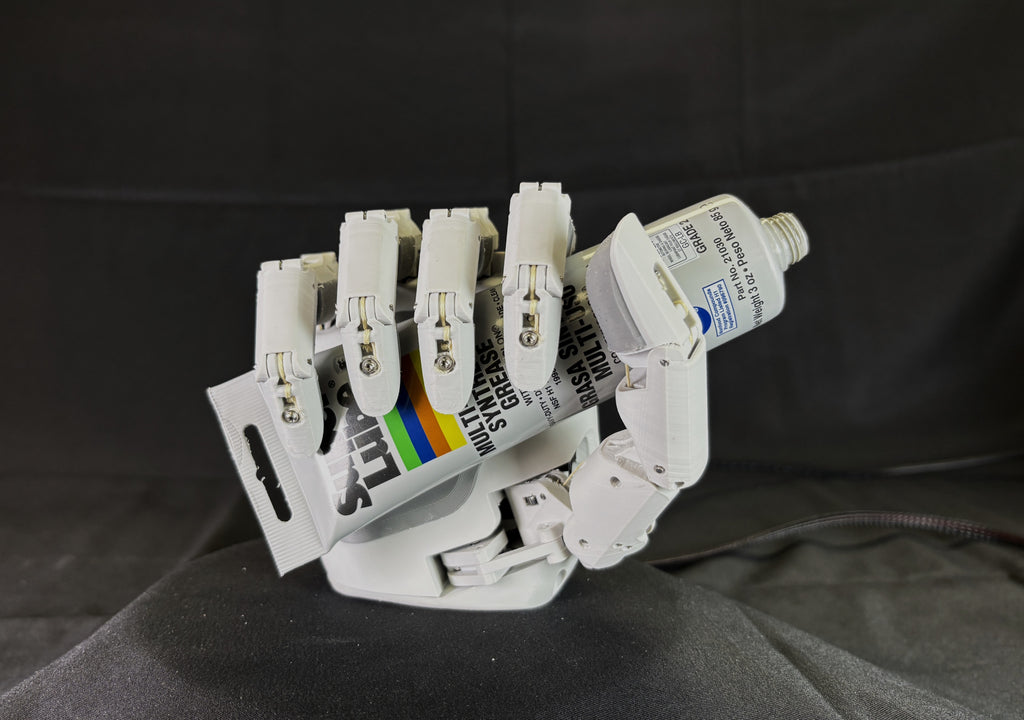

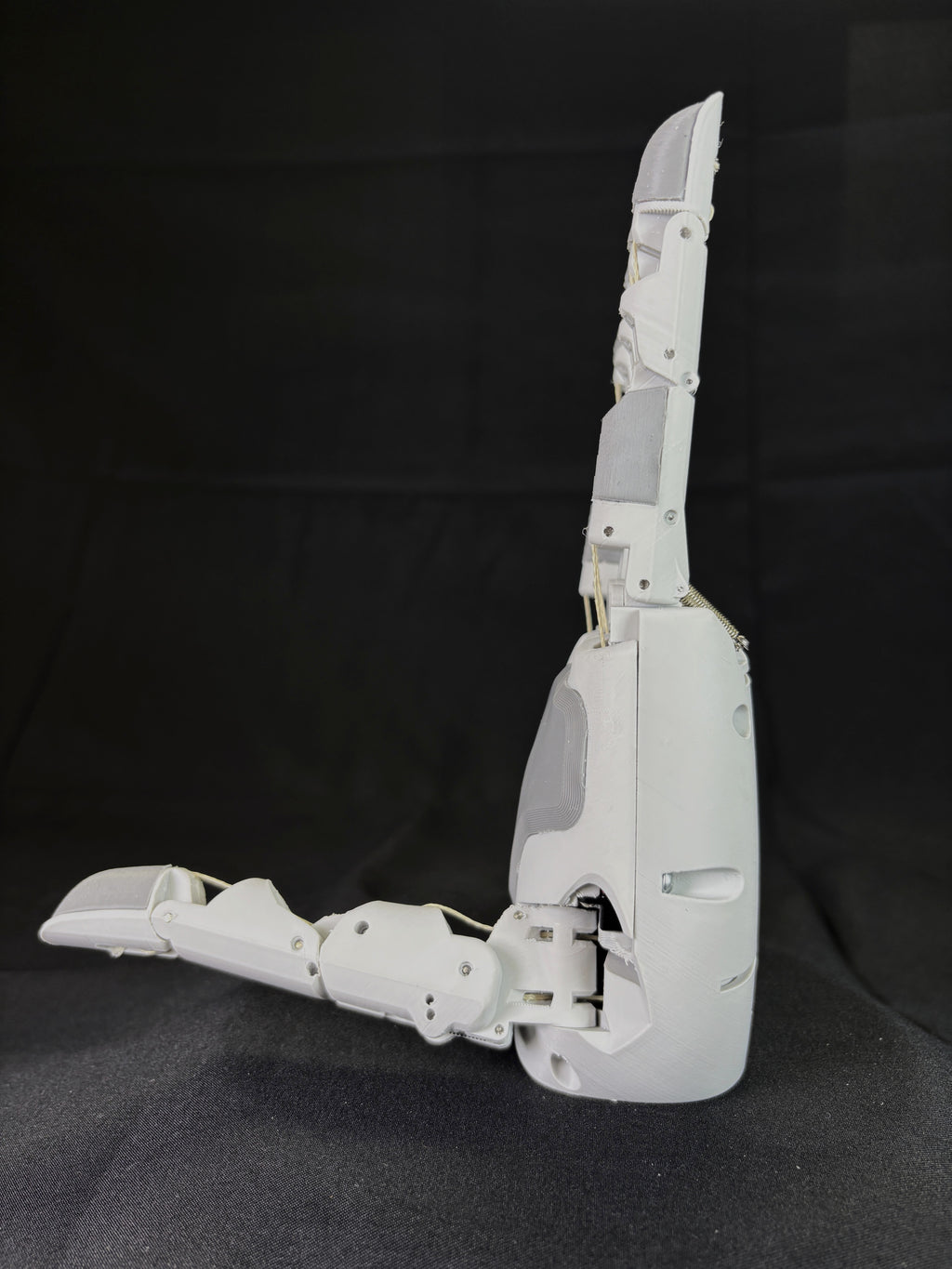

Aero Hand Open - Assembled
$720.00
Unbelievably functional and capable, built for embodied AI, and open source.



What's Included:

Fully assembled hand ready to run out of the box

Internal PCB with XT30 and USB-C connector

6Vdc 10A power supply with 4ft of cable


Hand Orientation
Kits lead time 30 days.
Assembled hands lead time 30 days.
All Orders are fully refundable before shipping
Weight: <400 grams
Size: 198mm x 95mm x 53.5mm
Actuation: 7 Coreless Serial Bus Servos, Cable Driven, Backdriveable
DOF: 7 Active DOF, 16 joints (Thumb x3, Fingers x1 underactuated)
Finger Tip Force: ~10 N
Open + Close Speed: ~1 Hz
Joint Range of Motion:
  • Finger Joints: 90°
  • Thumb Abduction: 0°-100°
  • Thumb CMC Flex: 55°
  • Thumb Proximal/Distal: 90°
Material: Nylon
Communication Interface: USB 2.0
MCU: ESP32-S3
Working Voltage: 6V
Maximum Current: 8A
